Casa Castellarnau

Plan #

s10-1165

Style:

Spanish

Spanish Colonial

This is some text inside of a div block.

Heading

What's Included in a Plan Set
  • Drawn to a 1/4 inch scale or 1/8 inch scale depending on the size of the house.
    Scale will be called out on the plans.
  • Foundation Plan
    Most plans include a slab foundation, however many plans have available options for crawl space, basement, or piling foundation. If the desired foundation is not offered as an existing option for a particular plan, modification services are available to meet those needs.

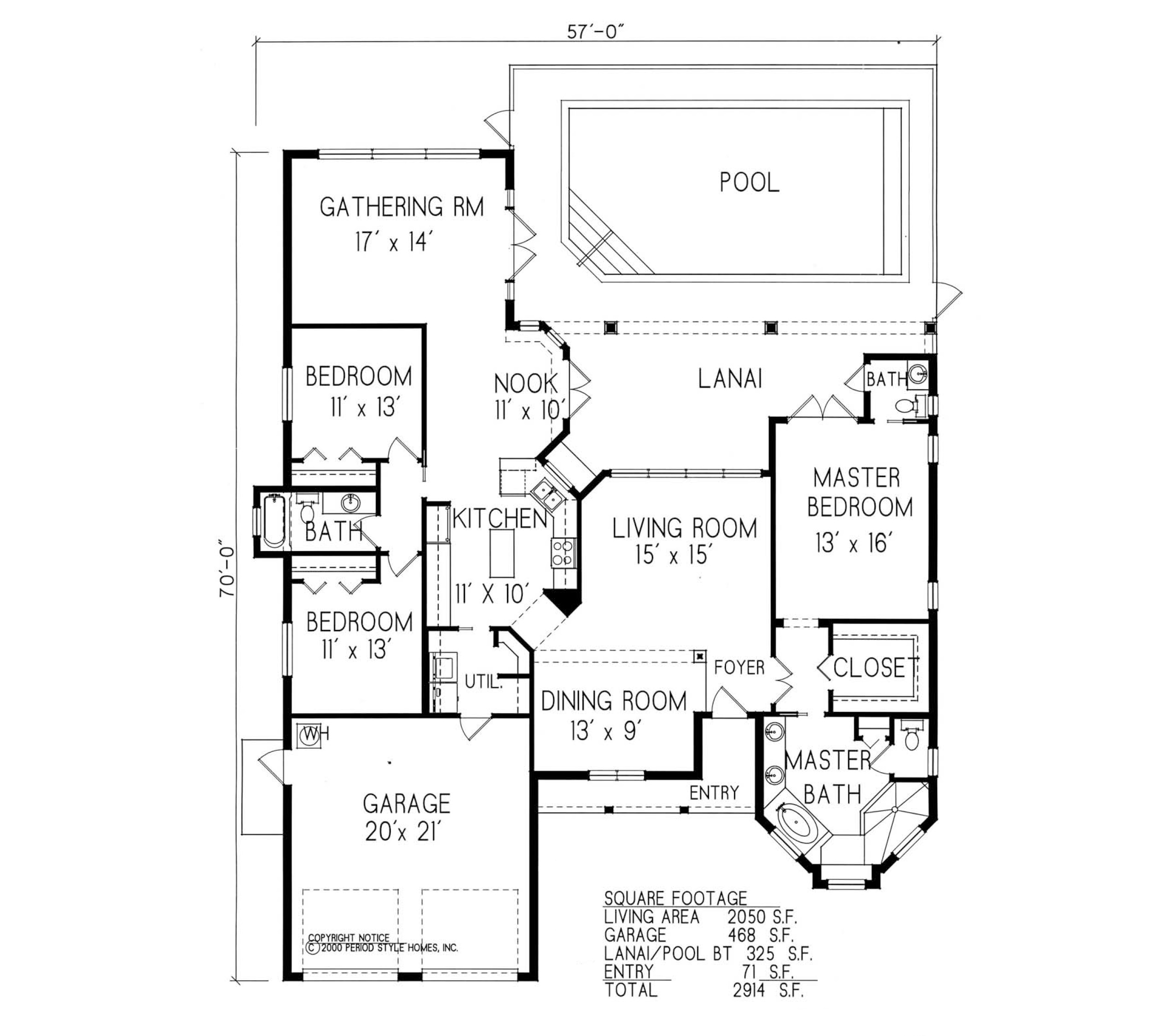

  • Floor Plan
  • Exterior elevations (a minimum of 4)
  • Door and Window Schedule
  • Roof Plan
  • Floor Joist Plan (if required)
  • Wall sections/details
  • Building sections/details
    Our plans generally offer either concrete block or 2 x 6 wood frame construction. We offer modification services to convert to/from concrete block, wood frame, or other construction types.

Most plans DO NOT include:

The following items are typically provided by your locally licensed tradesperson. Your builder will coordinate these with you.
  • Electrical Plan**
  • Plumbing Plan**
  • HVAC Plan**

We recommend that all plans be engineered by a local engineer or architect who will incorporate any property-specific details and local requirements. Some localities require this.

Request a Sample Plan ->

Send us details about  modifications you'd like made to this plan.

(opens pre-drafted email)
About This Plan
living
total
bedrooms
full bath
half bath
2050
ft²
2914
ft²
3
2
1
width
depth
Height
Stories
58
'
70
'
0
'
1
tags
Purchase
PDF Package:
$ 1,600.00 USD
See checkout page for other package options.
Starting at: $
1600.00
USD ( PDF Package)
See purchase page for other package options.
• All purchases are subject to our License Agreement

• Base price includes plan set "as-is" with a copyright authorization to build the plan on a single property.

PDF or DWG (CAD) Package
• The PDF package is ideal if no modifications are going to be made or if you intend for PSH to provide modifications to the plan.
• The DWG package allows you or your design professional the flexibility to make edits to your purchased plans directly from your own CAD program.
